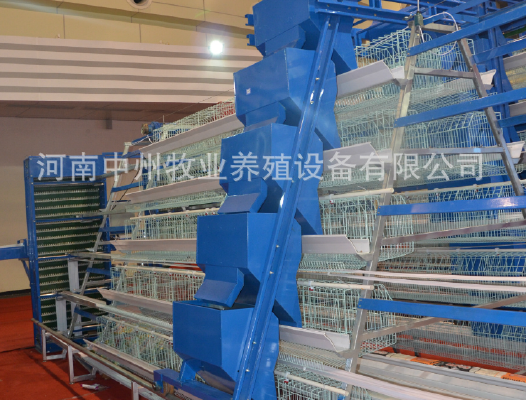

The structure characteristics of ladder type feeding machine

Component: This machine is composed of a machine frame, a walking power output system, a running system.

Frame：Rack is made of high quality steel rectangular steel welded. The rack is designed by engineers with many years of structural design experience, the structure is reasonable, has the advantages of large carrying capacity, structural deformation and so on.

Walking power system: The walking power system is driven by a vertical motor with an advanced reducer drive, which has no loss, low failure rate, long service life, stable operation and low noise, which can reduce the effect of noise on chickens and increase the egg production rate.

Feeding power system: The machine feeding system adopts the minus. Variable speed motor to do power, the implementation of 15~75r/min arbitrary adjustment, high sensitivity and high bearing capacity, low noise, long life, easy to operate, and smooth.

Material volume control system: Cutting wheel is a special mould pressing and plastic parts, prevent damage to other parts. Under the regulation of foreign bodies into the wheel can make each feeder feeding amount consistent. Reach the purpose of uniform material. By adjusting the reduction speed. The speed of the motor, the adjusting range of material quantity changes in each minutes between 1.25Kg~5.85Kg/12 meters. (you can also re design the blank range, according to the needs of customers to meet the needs of different customers)

Power distribution system：Distribution system is the international standard of electrical design, professional electrical engineer. After starting, the feeding machine walking to the rear, automatic stop. Labor saving, convenient management. Also according to the demand for design of electrical control system of the users.

Hoisting system：Lifting system is composed of horizontal and vertical conveyor conveyor. The vertical conveyor transports the feed from the ground to the flat conveyor, conveyor You Ping will feed evenly distributed to the hopper feeder. The hopper feeder to be filled after all, the photoelectric switch receives the signal control circuit of the motor is disconnected, the end of the feed conveyor work. To reduce the work intensity, reduce the time waste, fully improve the work efficiency.
